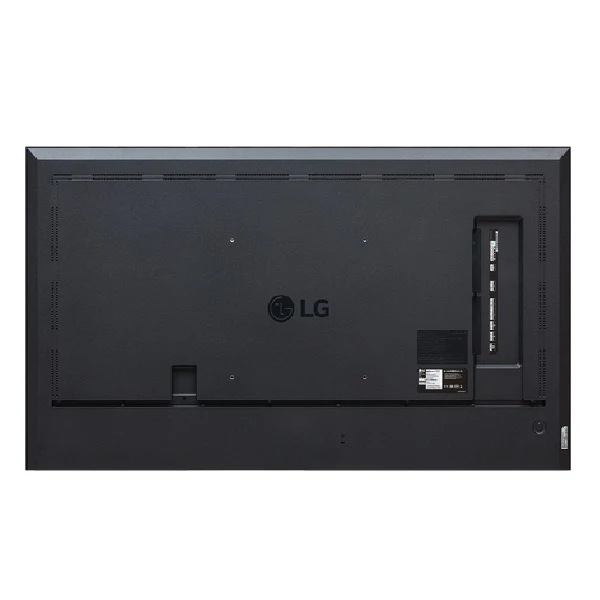

LG 55UH5Q 4K 55" UHD Signage

Panel:

• Screen Size    55"
• Panel Technology    ADS

• Back Light Type    Edge
• Aspect Ratio    16:9
• Native Resolution    3,840 x 2,160 (4K UHD)
• Refresh Rate    60 Hz
• Brightness (Typ.)    500 nit
• Contrast Ratio    1,200 : 1 (Typ.)

• Dynamic CR    1,000,000 : 1
• Color gamut    BT709 95%
• Viewing Angle (H x V)    178 × 178
• Color Depth    1.07 Billion Colors (10 bit (D))
• Response Time    8m (G to G)

• Surface Treatment (Haze)    25% (Typ.)

• Life Time (Min.)    50,000 Hrs
• Operation Hours (Hours / Days)    24 / 7
• Portrait / Landscape    Yes / Yes

Mechanical Specification:

• Bezel Color    Black
• Bezel Width    11.4 mm (Even)
• Weight (Head)   14.3  kg
• Packed Weight    18.1 kg
• Monitor Dimensions (W × H × D)    1,240.1 × 711.9 × 29.7 mm
• Carton Dimensions (W × H × D)    1,360 × 810 × 152 mm
• Handle    No
• VESA™ Standard Mount Interface    300 × 300 mm

Environment Conditions:

• Operation Temperature    0 °C to 40 °C
• Operation Humidity    10 % to 80 %

Power:

• Power Supply    AC 100-240 V ~, 50/60 Hz
• Power Type    Built-In Power

Power Consumption:

• Typ./Max.    130 W (TBD) / 154 W

• Smart Energy Saving (70%)    72 W

• DPM    0.5 W
• Power off    0.5 W
• BTU (British Thermal Unit)    351 BTU/Hr (Typ.), 525 BTU/Hr (Max.)


Standard (Certification):

• Safety    CB / NRTL
• EMC    FCC Class "A" / CE / KC
• ePEAT(US only)    Yes (Carbon "Reducing CO2") (TBD)
• ErP / Energy Star    Yes (NewErP) / Yes

OPS Compatibility:

• OPS Type Compatible    No
• OPS Power Built In    No

Software Compatibility:

• SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, LG ConnectedCare

Connectivity:

• Input    HDMI (3, HDCP 2.2/1.4), DP (HDCP 2.2/1.3), RS-232C (4 Pin Phone-Jack), RJ45 (LAN), IR, USB 2.0 Type A (2)
  Output    Audio, RS-232C (4 Pin Phone-Jack), IR (No / Yes (Support IR Daisy Chain via RS232C In/Out))

Sound:

• Speaker    10 W × 2

Special Feature:

• Tilt (Facedown)    Yes (Max. 15° Degree, 40°C Temperature) (TBD)
• IP Rating    IP5X
• Conformal Coating (Power Board)    Yes (Partial Space Coating)
