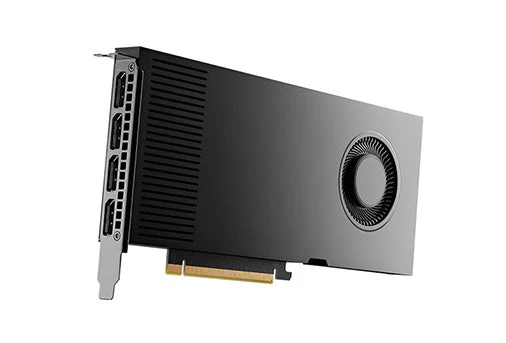

Leadtek NVIDIA RTX 4000 Ada Generation 20GB GDDR6 ECC Workstation GPU

The NVIDIA RTX 4000 Ada Generation is a professional single-slot GPU built on the Ada Lovelace architecture, delivering significant improvements in speed and power efficiency over previous generations. It is designed to handle demanding creative, design, and engineering workflows from the desktop.

Equipped with 6144 CUDA cores, 192 Tensor cores, and 48 RT cores, this GPU provides 26.7 TFLOPS of single-precision performance and 61.8 TFLOPS of RT core performance. The 20GB GDDR6 memory with ECC support and a 360 GB/s memory bandwidth ensures smooth handling of large datasets and complex models.

The card features a compact single-slot form factor (4.4" H x 9.5" L) with a blower active fan thermal solution, making it suitable for various workstation chassis. Connectivity includes four DisplayPort 1.4a outputs, PCI Express 4.0 x16 interface, and support for NVIDIA 3D Vision and Frame Lock (with Quadro Sync II).

GPU Architecture	NVIDIA Ada Lovelace Architecture
CUDA Cores	6144
Tensor Cores	192
RT Cores	48
Single-Precision Performance	26.7 TFLOPS
RT Core Performance	61.8 TFLOPS
Tensor Performance	427.6 TFLOPS
GPU Memory	20 GB GDDR6 with ECC
Memory Interface	160-bit
Memory Bandwidth	360 GB/s
Max Power Consumption	130W
Graphics Bus	PCI Express 4.0 x16
Display Connectors	DP 1.4a (4)
Form Factor	4.4" H x 9.5" L Single Slot
Product Weight	528g
Thermal Solution	Blower Active Fan
NVENC | NVDEC	3x | 3x (+AV1 encode & decode)
