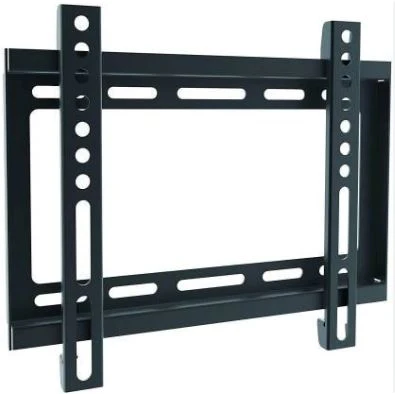

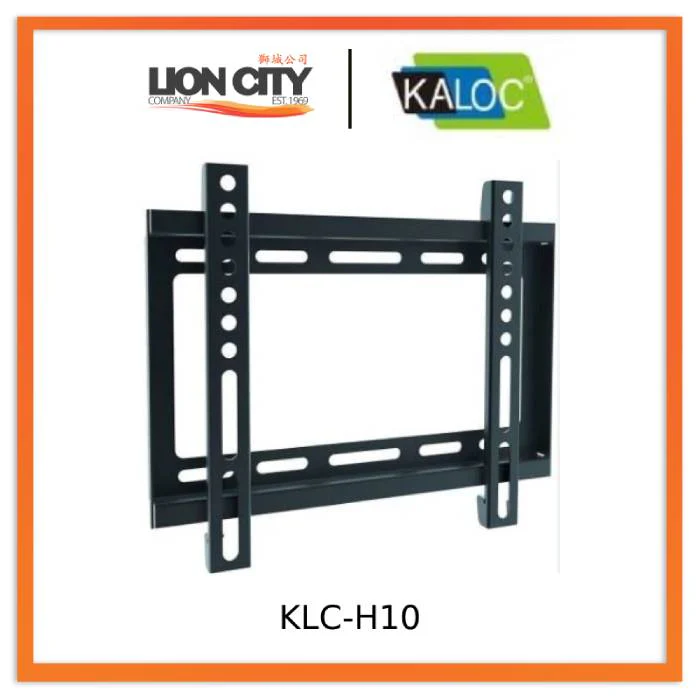

KALOC KLC-H10 TV Wall Mount Bracket with Installation

Fixed Mount 23"-39"

• Rated Load For TV: 35KG
• VESA: 50x50; 75x75; 100x100; 200x100; 200x200
• Swivel: Nil
• Tilt: Nil
• Rotate: Nil
• Level Adjustment: Nil
• Profile to the wall: 19.5MM
• Nett Weight/Pc: 0.82KG
• Cable Management: No
• Warranty: 2 years
• Colour: Black

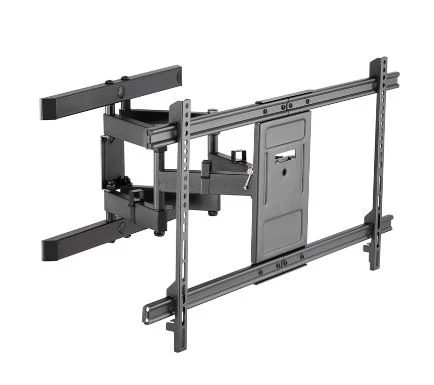

Swivel Mount 40"-55"

• Recommended Size: 37"-55"
• Rated Load for TV: 40KG
• VESA: 200x200; 400x200; 300x300; 400x400
• Swivel: -60°~+60°
• Tilt:-15°~+10°
• Rotate: Nil
• Level Adjustment: -3°~+3°
• Profile to the wall: 53~464MM
• Nett Weight/Pc: 5.13KG
• Cable Management: Yes
• Warranty: 2 years
• Colour: Black

Swivel Mount 66"-75"

• Rated Load for TV: 50KG
• VESA : 300x200; 300x300; 400x200; 400x300; 400x400; 600x400; 800x400
• Swivel : -60°~+60°
• Tilt: -15°~+3°
• Rotate: Nil
• Level Adjustment: -3°~+3°
• Profile to the wall: 77~428mm
• Nett Weight/Pc: 8.77KG
• Cable Management: Yes
• Warranty: 3 years
• Colour: Black

Fixed Mount 66"-75"

• Rated Load for TV: 75KG
• VESA : 400x200; 400x300; 400x400; 600x400
• Profile to the wall: 32mm
• Nett Weight/Pc: 4.40KG
• Cable Management: No
• Warranty: 3 years
• Colour: Black

Fixed Mount 40"-55"

• Rated Load for TV: 35KG
• VESA : 200x200; 300x300; 400x200;400x400
• Profile to the wall: 19.5mm
• Nett Weight/Pc: 1.03KG
• Cable Management: No
• Warranty : 3 years
• Colour: Black

Fixed Mount 58"-65"

• Rated Load for TV: 40KG
• VESA: 200x200; 400x200; 300x300; 400x400; 600x400
• Profile to the wall: 22mm
• Nett Weight/Pc: 1.20KG
• Cable Management: No
• Warranty: 3 years
• Colour: Black

Swivel Mount 58"-65"

• Rated Load for TV: 40KG
• VESA: 75x75; 100x100; 100x150; 100x200; 150x100; 150x150; 200x100; 200x200; 300x200; 300x300; 400x200; 400x300; 400x400
• Swivel : -60°~+60°
• Tilt : -15°~+5°
• Profile to the wall: 69mm
• Level Adjustment: -3°~+3°
• Cable Management: Yes
• Warranty: 3 years
• Colour: Black
