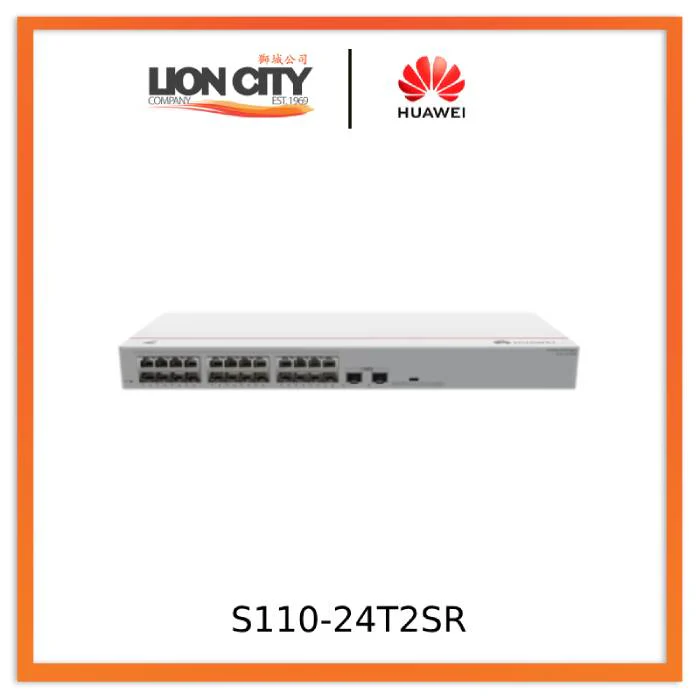

Huawei Switch S110-24T2SR 24*GE ports

SPECIFICATION:

• Dimensions with packaging (H x W x D) [mm(in.)]: 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.)
• Chassis height [U]: 1 U
• Weight without packaging [kg(lb)]: 1.8 kg (3.97 lb)
• Weight with packaging [kg(lb)]: 2.3 kg (5.07 lb)
• Typical power consumption [W]: 16 W
• Typical heat dissipation [BTU/hour]: 54.6 BTU/hour
• Maximum power consumption [W]: 17 W
• Maximum heat dissipation [BTU/hour]: 58 BTU/hour
• Static power consumption [W]: 5 W
• MTBF [years]: 76.10 years
• MTTR [hours]: 2 hours
• Availability: > 0.99999
• Noise at normal temperature (acoustic power) [dB(A)]: Noise-free (no fans), < 30
• Noise at normal temperature (acoustic pressure) [dB(A)]: Noise-free (no fans), < 20
• Redundant power supply: Not supported
• Long-term operating temperature [°C(°F)]: 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)
• Storage temperature [°C(°F)]: –40°C to +70°C (–40°F to +158°F)
• Long-term operating relative humidity [RH]: 5% RH to 95% RH (non-condensing)
• Long-term operating altitude [m(ft.)]: 0–5000 m (0–16404 ft.)
• Storage altitude [m(ft.)]: 0-5000 m (0-16404 ft.)
• Power supply mode: AC built-in
• Rated input voltage [V]: AC input: 100–240 V AC; 50/60 Hz
• Input voltage range [V]: AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz
• Maximum input current [A]: 0.8 A
• Memory: –
• Flash memory: –
• Console port: Not supported
• Eth Management port: Not supported
• USB: Not supported
• RTC: Not supported
• RPS input: Not supported
• Service port surge protection [kV]: Common mode: ±1 kV
• Power supply surge protection [kV]: Differential mode: ±6 kV; common mode: ±6 kV
• Ingress protection level (dustproof/waterproof): IP20
• Types of fans: None
• Heat dissipation mode: Natural heat dissipation
• Airflow direction               –
