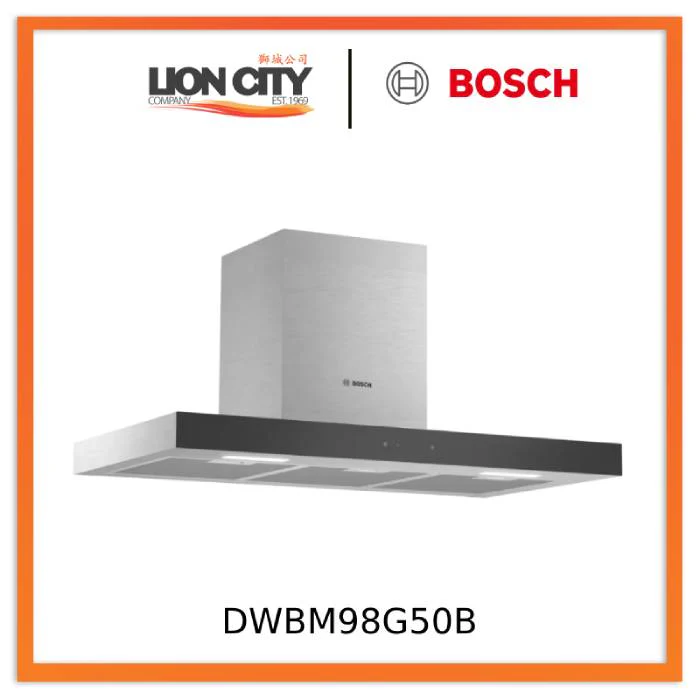

Bosch DWBM98G50B 4 Wall-mounted cooker hood 90 cm Stainless steel

Technical Specifications

General

• Width 90 cm
• Depth of the product 505 mm
• Built-in / Free-standing Built-in
• Operating Mode Convertible
• Max. air recirculation 650 m³/h
• Type of control setting and signalling devices touch control

Construction type

• Diameter of air outlet 150 mm
• Colour Stainless steel
• Installation type Wall-mounted
• Material of the body zinc plated
• Material chimney Stainless steel
• Motor location Integrated motor in hood chimney
• Number of motors 1
• Operating Mode Convertible
• Typology Wall-mounted

Performance

• Extraction rate according to EN 61591 max. 800 m³/h
• Noise max. Normal Level: 72 dB*
• 3 speeds

Design

• Wall mounted hood
• Stainless steel material
• 90 cm wide
• Box design
• TouchControl

Comfort

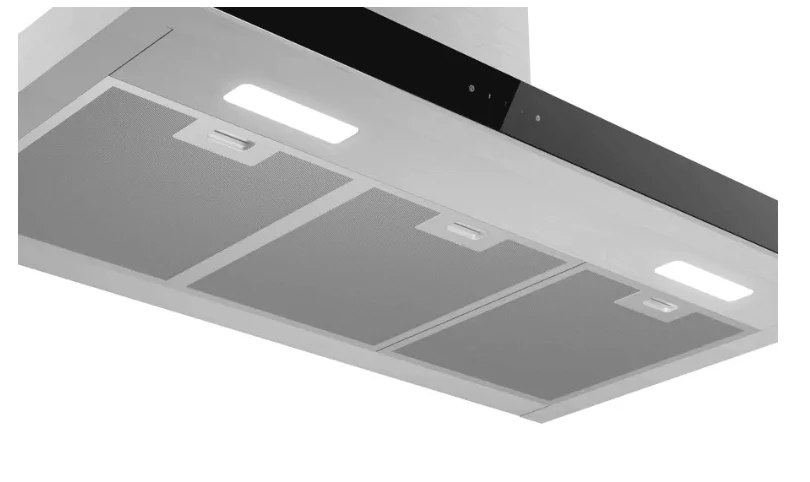

• LED Lighting
• 3 Metal grease filter

Technical information:

• Suitable for ducted or recirculating operation

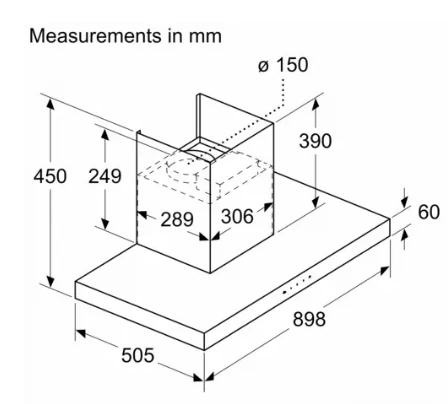

• Dimensions exhaust air (HxWxD mm): 450-840 x 898 x 505
• Dimensions recirculating (HxWxD mm): 450-450 x 898 x 505
• Electrical cable lenght 1.8 m
• Voltage: 220 - 240 V
• Diameter pipe Ø 150 mm (Ø 150 mm enclosed)
• Plug type_old: GB plug
