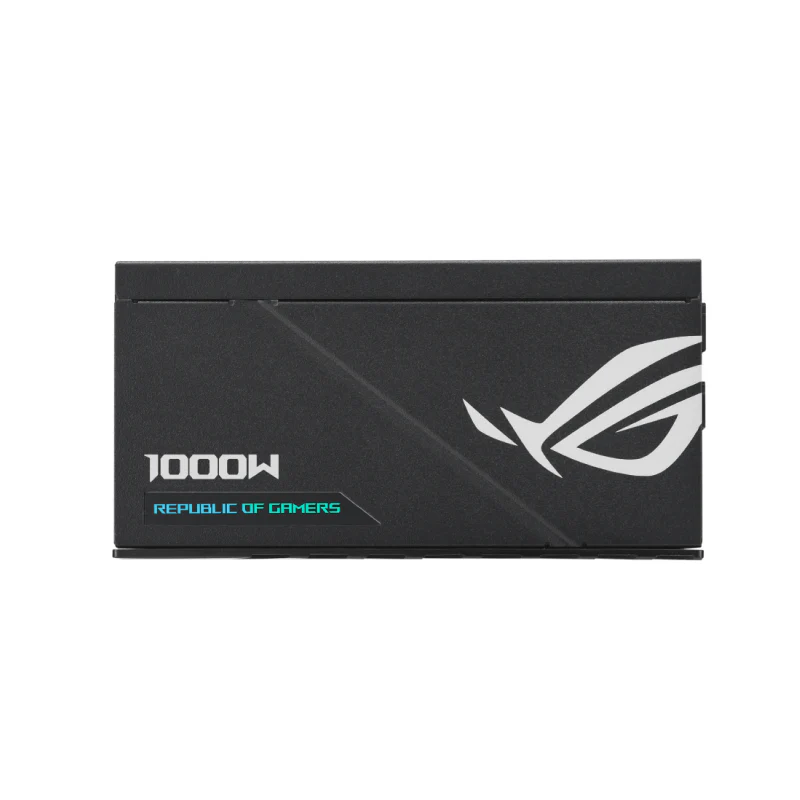

Asus ROG-LOKI-1000P-SFX-L-GAMING 195553721905 Power Supply
Intel Form Factor
- SFX-L
PFC Type
- Active PFC
ATX Standard
- ATX 3.0
Dimensions
- 125 x 125 x 63.5 mm
Efficiency
- 80Plus Titanium
Protection Features
- OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
- ROHS
AC Input Range
- 100-240Vac
DC Output Voltage
-
+3.3V +5V +12V -12V +5Vsb
Maximum Load
- 20A 20A 83.3A 0.8A 2.5A
Combined Load
- 110W 110W 1000W 9.6W 12.5W
Total Output
- 1000W
Cable Connectors
-
MB 24/20-pin x 1
-
CPU 4+4-pin x 2
-
PCI-E 16-pin x 1 (both PSU & component side)
-
PCI-E 8-pin x 3
-
SATA x 6
- PERIPHERAL x 4
Package Contents
-
Power Cord x 1
-
Motherboard Power Cable x 1 (450mm)
-
CPU Cable x 2 (550mm)
-
PCI-E Gen 5 16-pin Cable x 1 (450mm)
-
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)
-
PCI-E 1-to-1 Cable x 1 (450mm)
-
SATA 1-to-3 Cable x 2 (300+200+100mm)
-
Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)
-
Addressable RGB Cable x 1 (800mm)
-
User Manual x 1
- ATX to SFX adapter bracket x 1
Weight
- 1.83kg (single PSU)
AURA SYNC
- ARGB
$384.00
