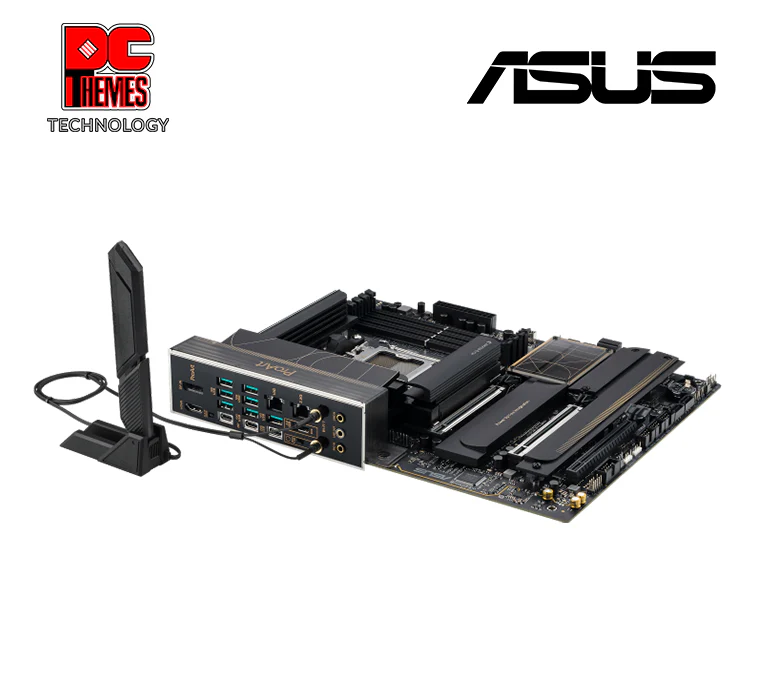

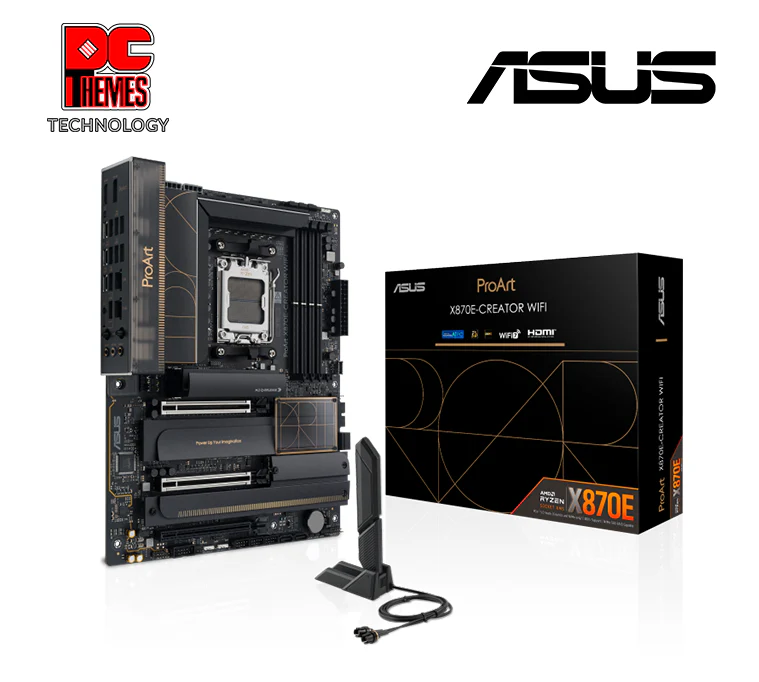

Asus ProArt X870E-Creator WiFi Motherboard

The ProArt X870E-Creator WiFi is engineered to maximise the performance of the latest AMD Ryzen 9000, 8000 and 7000 Series processors. It features a robust 16+2+2 power stage design, DDR5 memory support, and PCIe 5.0 connectivity for demanding creative workloads.

This motherboard offers dual USB4 ports, 10G and 2.5G Ethernet, and WiFi 7 for ultra-fast data transfers. Its professional aesthetic combines tone-on-tone black layers with metallic gold accents and a translucent I/O cover.

Built with high-quality components, the board includes extensive VRM heatsinks, dedicated M.2 cooling, and a premium audio codec for stable and reliable performance.

Socket	AMD Socket AM5 (AMD X870E)
Processor Support	AMD Ryzen 9000 / 8000 / 7000 Series
Memory Type	Dual Channel DDR5 (4 x DIMM Slots)
Memory Overclocking	High-speed memory overclocking support
Video Output	1 x DisplayPort, 1 x HDMI port
M.2 Slots	1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2
SATA Ports	SATA 6Gb/s Ports
Expansion Slots	1 x PCIe x16 Slot, Multiple Expansion Slots
LAN	High-speed 2.5Gb Ethernet
Wireless	Wi-Fi 6 (802.11ax)

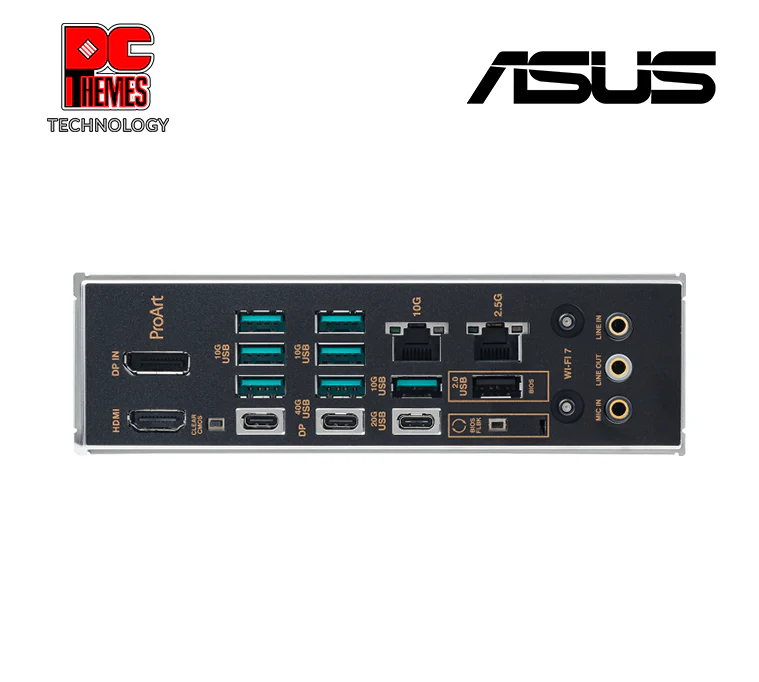

Rear Panel I/O	USB 3.2 Gen 2 / Gen 1 Ports, USB Type-C Connectivity, HD Audio Jacks & Networking Ports
Audio CODEC	Premium High Definition Audio CODEC
Internal Headers	Advanced Fan & RGB LED Headers
Form Factor	ATX
