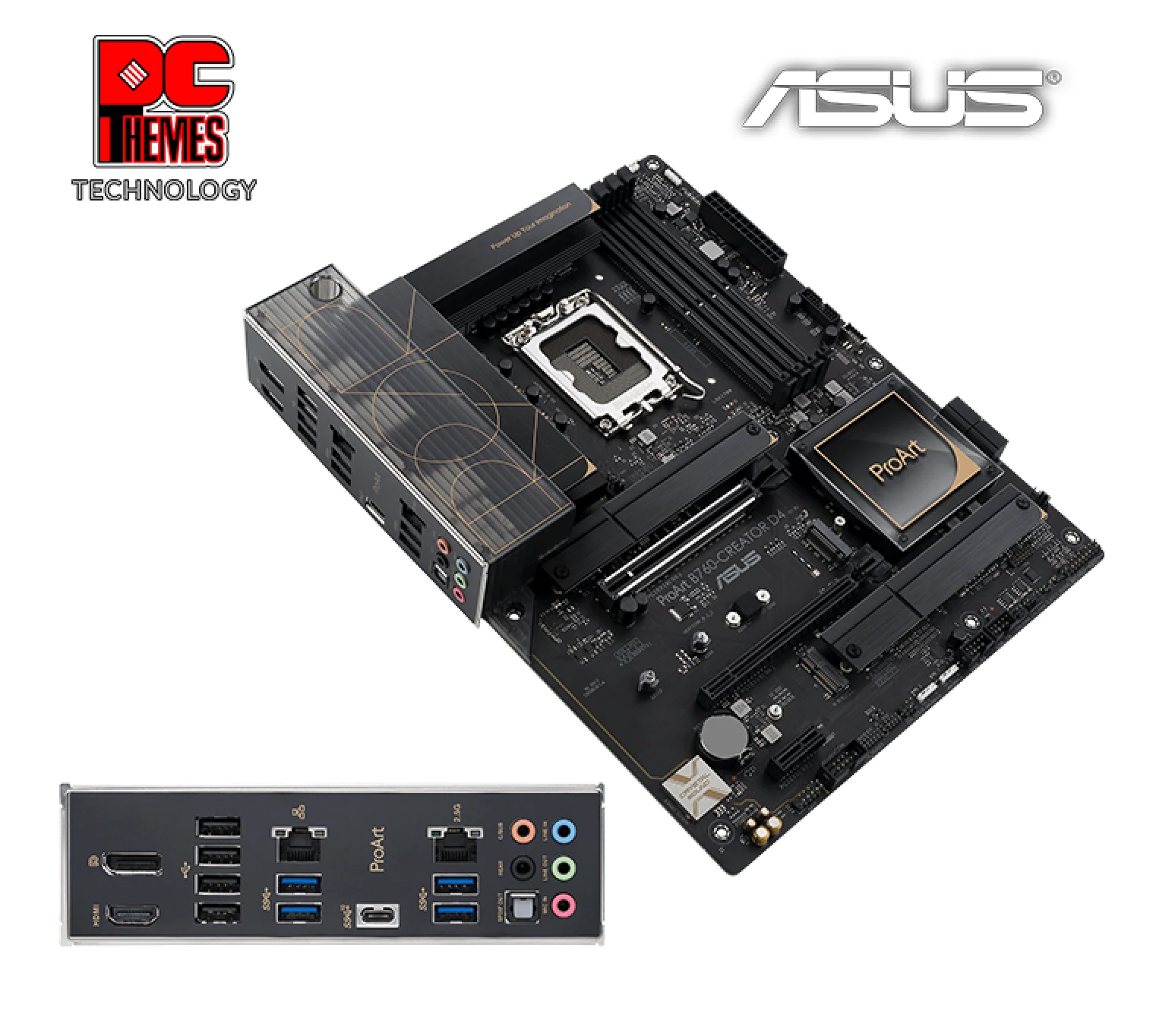

Asus ProArt B760-Creator D4 Motherboard

The ProArt B760-Creator D4 motherboard is engineered for content creation workloads including virtual production, 3D rendering, and 4K/8K video editing. It supports 14th, 13th, and 12th Gen Intel Core processors via the LGA1700 socket, with a robust 2+1 teamed power solution rated for 50A per stage and high-quality alloy chokes and capacitors.

Connectivity features include three M.2 slots, 2.5 Gb and 1 Gb Ethernet, a USB 3.2 Gen 2x2 Type-C front-panel connector, and a Thunderbolt 4 header. The ATX form factor includes a PCIe 5.0 slot for graphics cards, dual-channel DDR4 memory support, and comprehensive rear I/O with USB Type-C and HD audio jacks.

Thermal management is optimised with massive VRM heatsinks, high-conductivity thermal pads, and dedicated M.2 cooling to prevent throttling during sustained workloads. The board also includes advanced fan and RGB LED headers for custom cooling and lighting setups.

Socket	Intel LGA1700 (Intel B760)
Supported Processors	14th, 13th & 12th Gen Intel Core
Memory Type	Dual Channel DDR4 (4 x DIMM slots)
Memory Overclocking	High-speed memory overclocking support
Form Factor	ATX
Video Output	1 x DisplayPort, 1 x HDMI port
M.2 Slots	2x M.2 slots (PCIe 4.0 x4)
SATA Ports	SATA 6 Gb/s ports
Expansion Slots	1 x PCIe x16 slot, multiple expansion slots
LAN	2.5 Gb Ethernet
Wireless	None
Audio	Premium High Definition Audio CODEC
Rear Panel I/O	USB 3.2 Gen 2/Gen 1 ports, USB Type-C connectivity, HD audio jacks & networking ports
Internal Headers	Advanced fan & RGB LED headers
