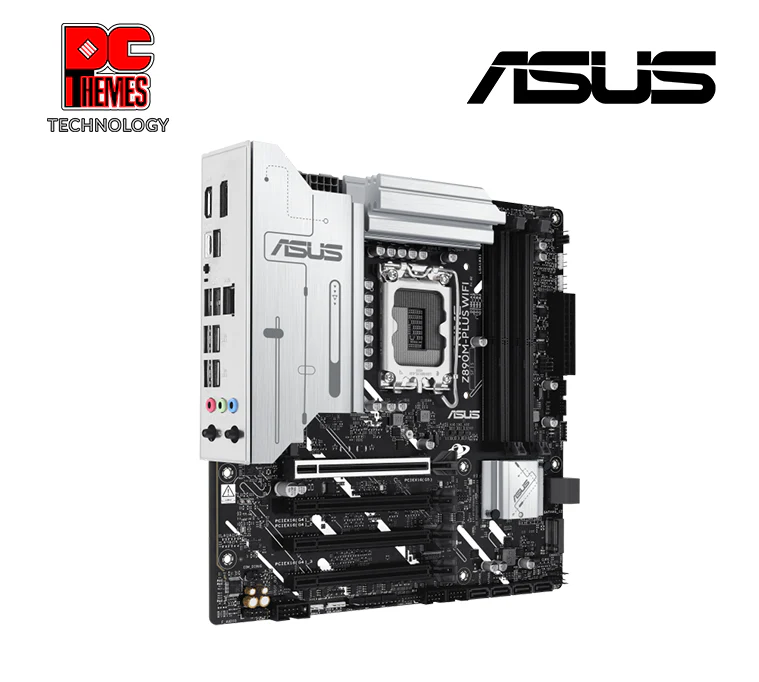

Asus Prime Z890M-Plus Wifi-CSM Motherboard

The ASUS PRIME Z890M-PLUS WIFI-CSM motherboard is engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). It features a robust power solution with high-quality power stages, alloy chokes, and durable capacitors, supported by an optimized thermal design with massive VRM heatsinks and high-conductivity thermal pads.

This motherboard offers next-gen connectivity including integrated Wi-Fi 6 (802.11ax), high-speed 2.5Gb Ethernet, and comprehensive USB Type-C support for ultra-fast data transfers. It is designed to be Advanced AI PC-ready, providing the power and connectivity needed for demanding AI applications.

The board supports dual-channel DDR5 memory across four DIMM slots, includes one PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots for fast storage, and features a micro-ATX form factor with premium build quality and intelligent hardware routing for maximized stability.

Processor Support	Intel Socket LGA1851 (Intel Z890)
Processor Support	Intel Core Ultra Processors (Series 2)
Memory Specs	Dual Channel DDR5 (4 x DIMM Slots)
Memory Specs	High-speed memory overclocking support
Video Output	1 x DisplayPort
Video Output	1 x HDMI port
Fast Storage	1x PCIe 5.0 M.2, 3x PCIe 4.0 M.2
Fast Storage	SATA 6Gb/s Ports
Expansion Slots	1 x PCIe x16 Slot, 1 x PCIe x1 Slot
Connectivity	LAN: High-speed 2.5Gb Ethernet
Connectivity	Wireless: Wi-Fi 6 (802.11ax)

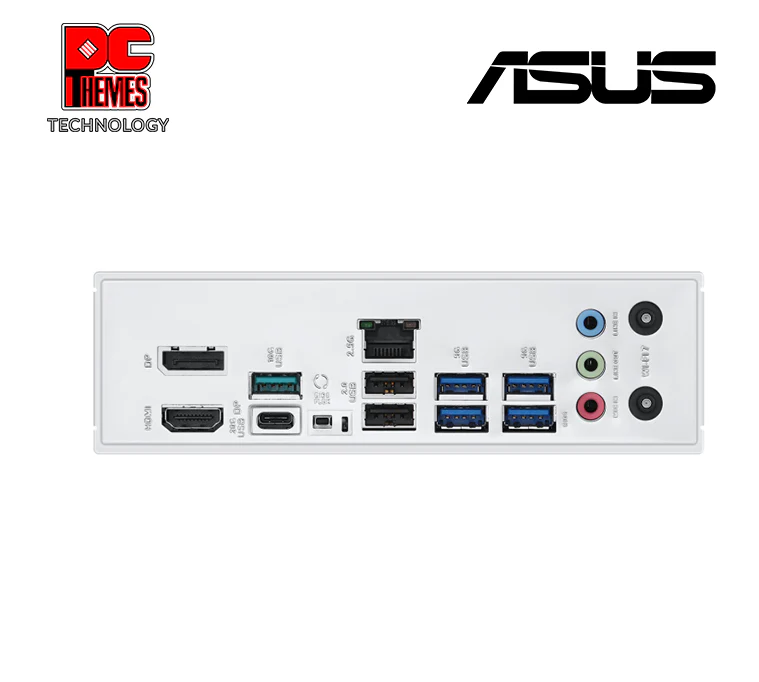

Rear Panel I/O	USB 3.2 Gen 2 / Gen 1 Ports
Rear Panel I/O	USB Type-C Connectivity
Rear Panel I/O	HD Audio Jacks & Networking Ports
Internal & Audio	Premium High Definition Audio CODEC
Internal & Audio	Advanced Fan & RGB LED Headers
Form Factor	Micro-ATX
