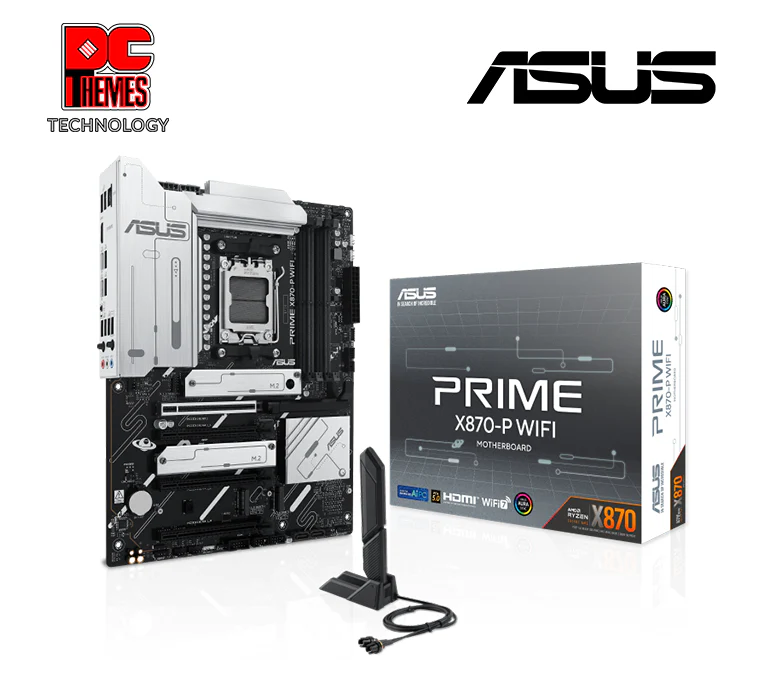

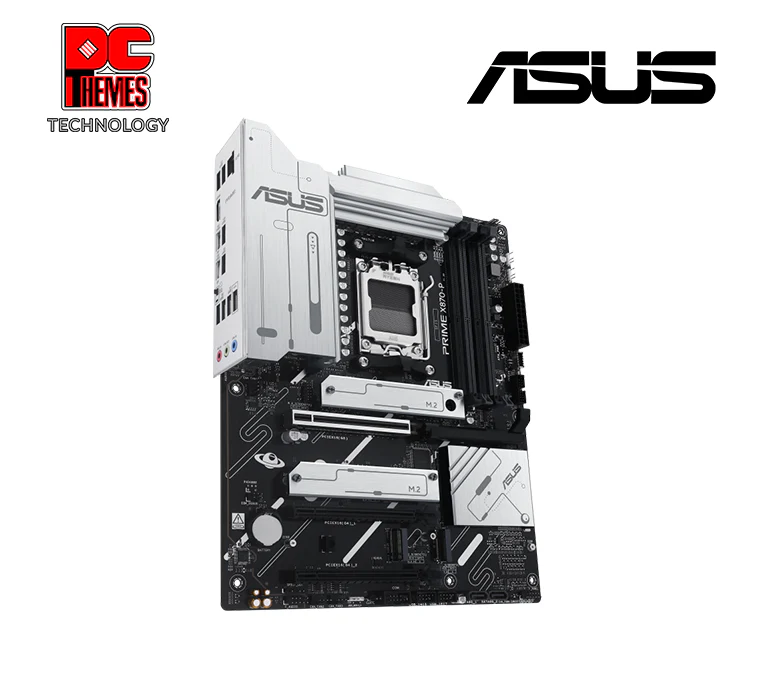

Asus Prime X870-P Wi-Fi CSM Motherboard

The Asus Prime X870-P Wi-Fi CSM Motherboard is engineered to unlock the full capabilities of AMD Ryzen™ 9000, 8000, and 7000 series processors. Featuring a robust power design with high-quality power stages, alloy chokes, and durable capacitors, it delivers stable performance for demanding tasks. An optimized thermal solution with massive VRM heatsinks and high-conductivity thermal pads ensures efficient heat dissipation, while dedicated M.2 cooling prevents throttling during intensive operations.

This motherboard offers next-gen connectivity with integrated Wi-Fi 6 (802.11ax), high-speed 2.5Gb Ethernet, and comprehensive USB Type-C support for ultra-fast data transfers. It supports dual-channel DDR5 memory across four DIMM slots, providing high-speed memory overclocking capabilities. Storage options include one PCIe 5.0 M.2 and two PCIe 4.0 M.2 slots, along with SATA 6Gb/s ports.

Built on a Micro-ATX form factor, the board includes one PCIe x16 and one PCIe x1 expansion slot, ranging USB 3.2 Gen 2 and Gen 1 ports, HD audio jacks, and advanced fan and RGB LED headers. The Premium High Definition Audio CODEC ensures clear audio output, making this motherboard a solid foundation for a high-performance PC build.

Socket	AMD Socket AM5 (AMD X870)
Processor Support	AMD Ryzen™ 9000 / 8000 / 7000 Series
Memory Type	Dual Channel DDR5
Memory Slots	4 x DIMM Slots
Video Output	1 x DisplayPort, 1 x HDMI® port
M.2 Slots	1x PCIe 5.0 M.2, 2x PCIe 4.0 M.2
SATA Ports	SATA 6Gb/s Ports
Expansion Slots	1 x PCIe x16 Slot, 1 x PCIe x1 Slot
LAN	High-speed 2.5Gb Ethernet
Wireless	Wi-Fi 6 (802.11ax)
Rear Panel I/O	USB 3.2 Gen 2 / Gen 1 Ports, USB Type-C® Connectivity, HD Audio Jacks & Networking Ports
Audio CODEC	Premium High Definition Audio CODEC
Form Factor	Micro-ATX
