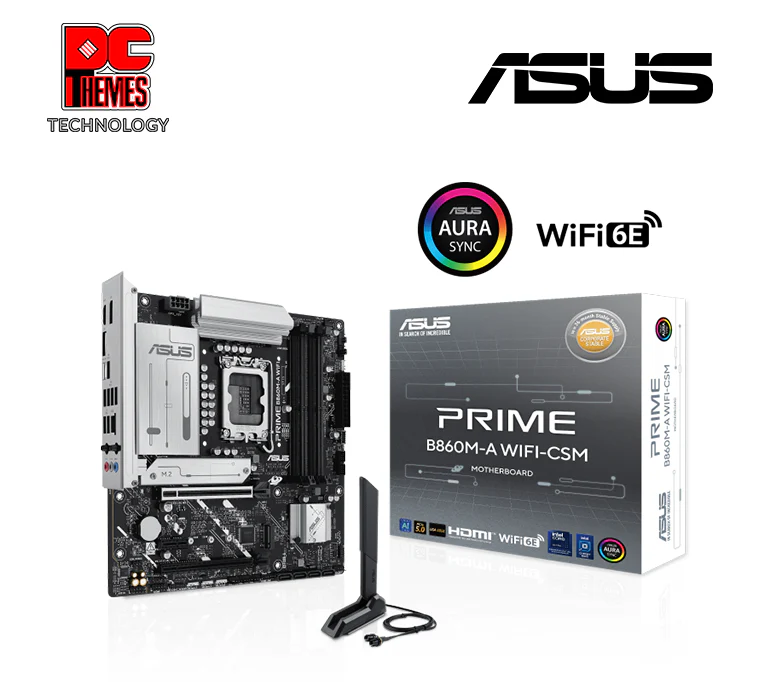

Asus Prime B860M-A Wifi-CSM Motherboard

The ASUS PRIME B860M-A WIFI-CSM motherboard is engineered to unlock the full potential of the latest Intel Core Ultra Processors (Series 2). It features a robust power solution with high-quality power stages, alloy chokes, and durable capacitors, ensuring stable performance for demanding AI applications.

Optimized thermal design includes massive VRM heatsinks, high-conductivity thermal pads, and dedicated M.2 cooling to prevent throttling during intensive tasks. Next-gen connectivity is provided by integrated Wi-Fi 6 (802.11ax), high-speed 2.5Gb Ethernet, and comprehensive USB Type-C support for ultra-fast data transfers.

The motherboard is built with premium quality, featuring a high-grade PCB design and intelligent hardware routing for maximized memory performance and stability. It supports dual-channel DDR5 memory across four DIMM slots and offers multiple M.2 slots for fast storage.

Processor Support	Latest Generation Socket (Intel Core Ultra Processors Series 2)
Memory	Dual Channel DDR5, 4 x DIMM Slots, Overclocking Support
Form Factor	Micro-ATX
Video Output	1 x DisplayPort, 1 x HDMI
Expansion Slots	1 x PCIe x16 Slot, 1 x PCIe x1 Slot
Storage	Multiple M.2 Slots, SATA 6Gb/s Ports
Networking	2.5Gb Ethernet, Wi-Fi 6 (802.11ax)

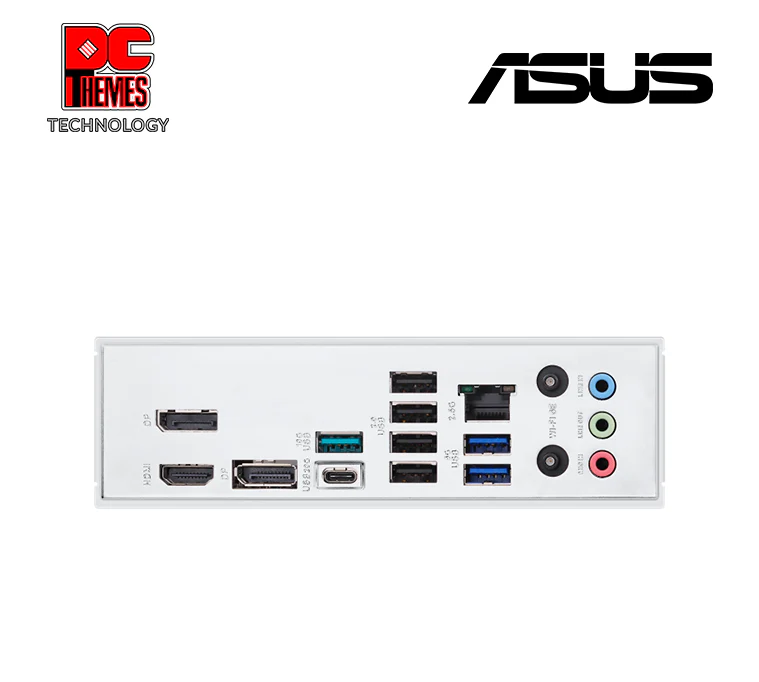

Rear Panel I/O	USB 3.2 Gen 2/Gen 1 Ports, USB Type-C, HD Audio Jacks
Audio	Premium High Definition Audio CODEC
Internal Headers	Advanced Fan & RGB LED Headers
