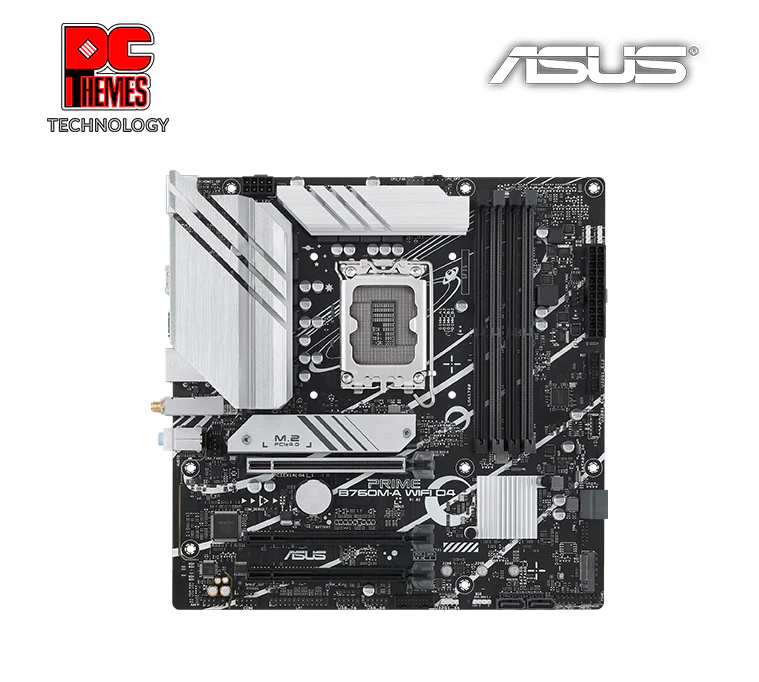

Asus Prime B760M-A Wi-Fi D4 Motherboard
The Asus Prime B760M-A Wi-Fi D4 motherboard is built on the Intel B760 chipset with an LGA 1700 socket, supporting 14th, 13th, and 12th Gen Intel Core processors. It features dual-channel DDR4 memory with four DIMM slots, supporting up to 128GB and speeds up to 5333 MT/s via overclocking, enhanced by Asus OptiMem II technology for improved signal integrity.
This mATX board offers PCIe 4.0 connectivity with two M.2 slots for fast storage and one PCIe 4.0 x16 slot driven by the CPU. It includes Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth v5.2 for robust networking. Video output options include one DisplayPort 1.4 and two HDMI 2.1 ports, supporting up to 4K at 60Hz with a compatible integrated graphics processor.
Comprehensive cooling solutions include VRM heatsinks, an M.2 heatsink, and a PCH heatsink, complemented by hybrid fan headers and Fan Xpert 2+ software. The board features Asus 5X Protection III for durability, Aura Sync RGB lighting with onboard Addressable Gen 2 and Aura RGB headers, and a full array of rear and front USB ports, including USB 3.2 Gen 2 and a front USB Type-C connector.
| Socket | Intel LGA 1700 |
| Chipset | Intel B760 |
| Form Factor | mATX (24.4 cm x 24.4 cm) |
| Memory Type | Dual Channel DDR4 |
| Memory Slots | 4 x DIMM |
| Max Memory Capacity | 128GB |
| Memory Speed | Up to 5333 MT/s (OC) |
| M.2 Slots | 2 x PCIe 4.0 x4 |
| SATA Ports | 4 x SATA 6Gb/s |
| PCIe x16 Slots | 3 (1 from CPU, 2 from chipset) |
| LAN | Realtek 2.5Gb Ethernet |
| Wi-Fi | Wi-Fi 6 (802.11 a/b/g/n/ac/ax) |
| Bluetooth | v5.2 |
| Video Outputs | 1 x DisplayPort 1.4, 2 x HDMI 2.1 |
| Rear USB | 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A) |
| Front USB | 1 x USB 3.2 Gen 1 Type-C, 4 x USB 3.2 Gen 1, 5 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio |
| RGB Headers | 3 x Addressable Gen 2, 1 x Aura RGB |
| Weight | 0.9 kg |
